Rib Panel

Rib panel metal roofing

Wide 36" coverage, exposed fasteners and no clips - the fastest, most affordable way to a real metal roof. Approved for use outside the HVHZ.

Quote rib panel Product sheet

The panel

Rib panel

36" coverage in 29 ga steel or 0.032" aluminum, over plywood, OSB or battens.

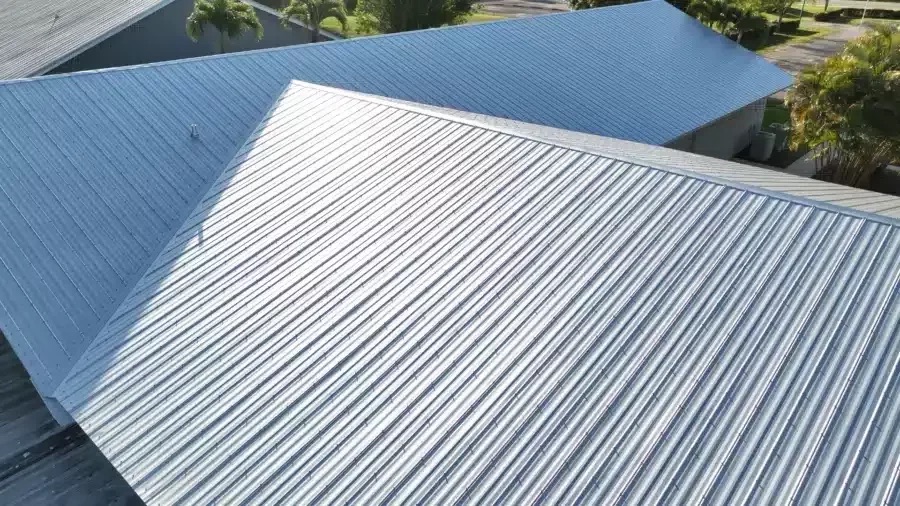

Rib Panel

RIB - Rib Panel

A wide 36" through-fastened panel that covers ground fast and costs less per square than any concealed-fastener system. The residential workhorse: porches, additions, barns and whole re-roofs where budget leads.

Profile	Rib Panel
Panel coverage	36" nominal
Attachment	Exposed fastener through the pan
Material	29 ga steel (80 ksi min) or 0.032" aluminum (23 ksi min)
Minimum slope	1/2":12" with lap sealant · 3":12" without lap sealant
Finish	Galvalume, SMP or PVDF (steel); PVDF (aluminum)
Fire rating	Class A
Florida approval	Outside HVHZ only (FL24397.7 (0.032" aluminum) · FL24397.8 through .12 (29 ga steel))

Quote this panel Full specs

Where it shines

Porches, additions, barns and value re-roofs

When the budget leads and the roof is straightforward, rib panel wins. Wide panels mean fewer pieces and fewer laps, and it goes down over plywood, OSB or battens. Pair it with matching trim and closures and quote it alongside everything else in IMQ.

Florida approvals Accessories

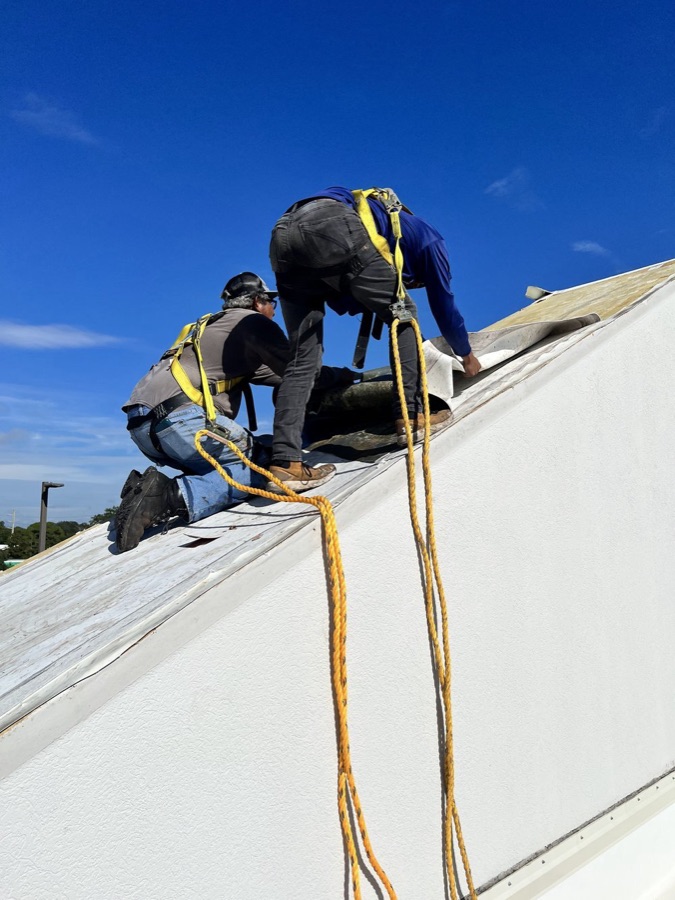

ERS Installations metal roofing crew at work

Installed by ERS

We don't just supply it. We install it.

Add professional installation to your rib panel roof and ERS handles the whole job - vetted crews, onsite project management, and code-compliant work from site prep to final walkthrough. One team, one point of contact, start to finish.

Vetted crews with validated insurances - the 10 Point Peace of Mind Guarantee
Onsite project management for quality, safety, and timelines
HVHZ, Miami-Dade, and Broward County code compliant
Backed by a limited lifetime workmanship warranty

Book your installation Call 904-206-8316

FAQ

Rib panel questions

Can rib panel be used in the HVHZ?

No. The rib panel is approved for use outside the High Velocity Hurricane Zone only, under Florida Product Approvals FL24397.7 through FL24397.12. It is not approved for Miami-Dade or Broward County.

What is the most affordable way to a metal roof?

Rib panel. At 36" coverage with exposed fasteners and no clips, it covers more ground per panel and installs faster than any concealed-fastener system, which is why it is the usual choice for porches, additions, barns and budget-led re-roofs.

Can rib panel go over battens?

Yes. It is approved over 1/2" plywood, 19/32" OSB, or 1x4 wood battens at 24" on centre. The batten assembly with the enhanced fastener pattern carries the highest rating of the range at -183.5 psf.

What slope does rib panel need?

A minimum of 1/2":12" with lap sealant, or 3":12" without lap sealant.
