ERS Metals

PBR / R-Panel

PBR panel for commercial roofing

The commercial standard: a 36" structural through-fastened panel that spans open purlins up to 60" on centre with no deck. The 24 ga is HVHZ and Miami-Dade approved.

Quote PBRProduct sheet

The panel

PBR / R-panel

36" coverage, 1-1/8" rib, 24 ga or 26 ga galvalume coated steel. Fastened through the pan into purlins or deck.

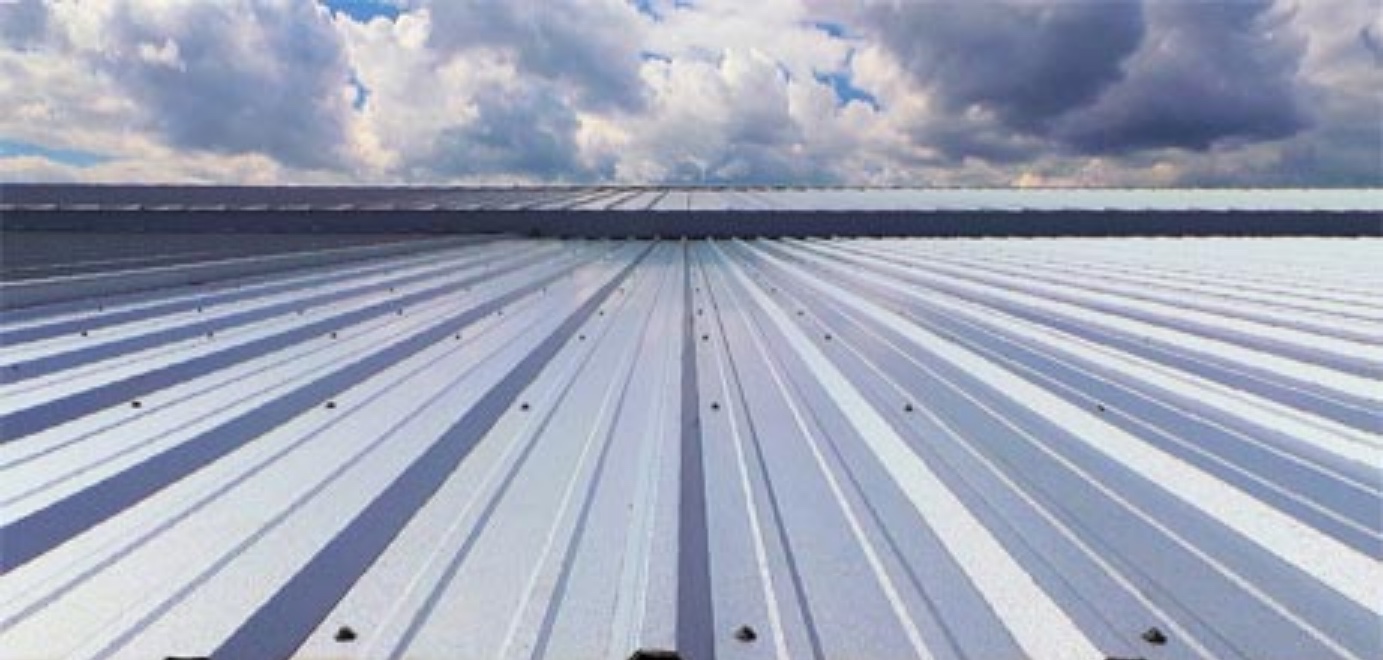

PBR - PBR / R-Panel metal roofing panel profile
PBR Panel

PBR - PBR / R-Panel

The commercial standard. A 36" structural through-fastened panel with a 1-1/8" rib that spans open purlins up to 60" on centre, so it goes straight over steel framing with no deck. The 24 ga is HVHZ approved.

ProfilePBR / R-Panel
Panel coverage36" nominal
Minimum rib height1-1/4" nominal (1-1/8" minimum per approval)
AttachmentExposed fastener through the pan
Material24 ga or 26 ga galvalume coated steel, 50 ksi minimum yield
Maximum purlin spacing60" o.c.
Minimum purlin thickness16 ga
Minimum slope2":12" in the HVHZ · 1/2":12" outside the HVHZ
FinishGalvalume, SMP or PVDF
Fire ratingClass A
Florida approval24 ga HVHZ & Miami-Dade approved (FL36968.2); 26 ga outside HVHZ only
Quote this panel Full specs
Commercial buildings in Northeast Florida

Where it shines

Warehouses, agricultural and light industrial

PBR carries the load over open framing, so there is no decking to buy or install. That makes it the most economical compliant way to cover a large commercial roof, and the 24 ga takes it into Miami-Dade and Broward where most exposed-fastener panels cannot go.

Florida approvalsColor coatings & trim
ERS Installations metal roofing crew at work

Installed by ERS

We don't just supply it. We install it.

Add professional installation to your PBR roof and ERS handles the whole job - vetted crews, onsite project management, and code-compliant work from site prep to final walkthrough. One team, one point of contact, start to finish.

  • Vetted crews with validated insurances - the 10 Point Peace of Mind Guarantee
  • Onsite project management for quality, safety, and timelines
  • HVHZ, Miami-Dade, and Broward County code compliant
  • Backed by a limited lifetime workmanship warranty
Book your installationCall 904-206-8316

FAQ

PBR panel questions

Can PBR be used in the HVHZ?

The 24 ga PBR panel is approved for use inside and outside the High Velocity Hurricane Zone under Florida Product Approval FL36968.2, at a minimum slope of 2":12" in the HVHZ. The 26 ga is approved outside the HVHZ only.

Does PBR need a solid deck?

No. PBR is a structural panel that spans open purlins up to 60" on centre over 16 ga minimum steel framing, which is what makes it economical on commercial buildings. It can also be installed over 1/2" plywood where a deck already exists.

What is the difference between PBR and R-panel?

They are the same profile. PBR adds a purlin bearing leg on the underlap, which supports the panel at the side lap and gives a tighter, better sealed joint than a plain R-panel.

What coverage and rib height does PBR have?

36" nominal coverage with a 1-1/8" minimum rib height, in 24 ga or 26 ga galvalume coated steel at 50 ksi minimum yield.
