Standing Seam

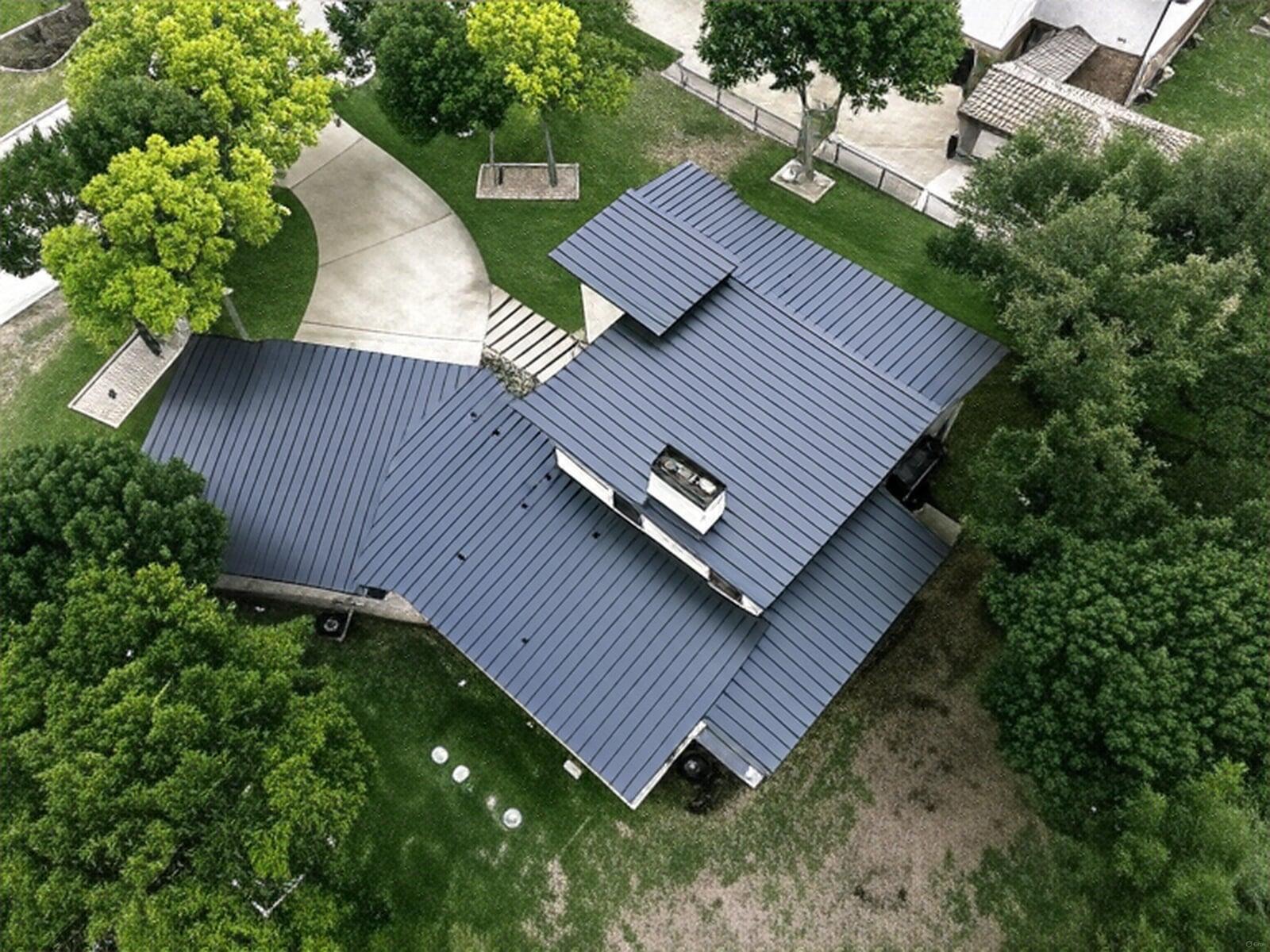

NS100 - 1" Nailstrip Standing Seam
Clip-free standing seam. The panel fastens through an integral nailing flange, which takes a step out of the install while keeping fasteners concealed under the next panel.
Clip-free standing seam. The panel fastens through an integral nailing flange, which takes a step out of the install while keeping fasteners concealed under the next panel.
Best for: Residential, outside the HVHZ. Florida Product Approval FL41812.04-R1 (24 ga) · FL46540.01-R0 (26 ga). Verify the current revision at floridabuilding.org before submittal.
Why this panel
- Outside HVHZ only (FL41812.04-R1 (24 ga) · FL46540.01-R0 (26 ga))
- Class A fire rated
- Attachment: Integral nailing flange, no clips
- Fabricated to exact length by our Florida fabrication partners - no end-laps, less waste
- Delivered crated and protected anywhere in Florida - Miami to Jacksonville
Fabricated to exact length, delivered crated.
Specifications
NS100 at a glance
| Profile | 1" Nailstrip Standing Seam |
|---|---|
| Seam height | 1" nominal |
| Panel coverage | 16" maximum (24 ga) · 15.75" maximum (26 ga) |
| Material | 24 ga or 26 ga steel, 50 ksi minimum yield |
| Corrosion resistance | Per FBC 1507.4.3 |
| Attachment | Integral nailing flange, no clips |
| Fastener | #10 x 1" pancake-style, per FBC 1506.6 |
| Substrate | 15/32" minimum plywood (24 ga) · 7/16" OSB or 15/32" plywood (26 ga) |
| Finish | Galvalume, SMP or PVDF |
| Fire rating | Class A |
| Florida approval | Outside HVHZ only (FL41812.04-R1 (24 ga) · FL46540.01-R0 (26 ga)) |
Installed by ERS
We don't just supply it. We install it.
Add professional installation to your NS100 roof and ERS handles the whole job - vetted crews, onsite project management, and code-compliant work from site prep to final walkthrough. One team, one point of contact, start to finish.
- Vetted crews with validated insurances - the 10 Point Peace of Mind Guarantee
- Onsite project management for quality, safety, and timelines
- HVHZ, Miami-Dade, and Broward County code compliant
- Backed by a limited lifetime workmanship warranty
