Standing Seam

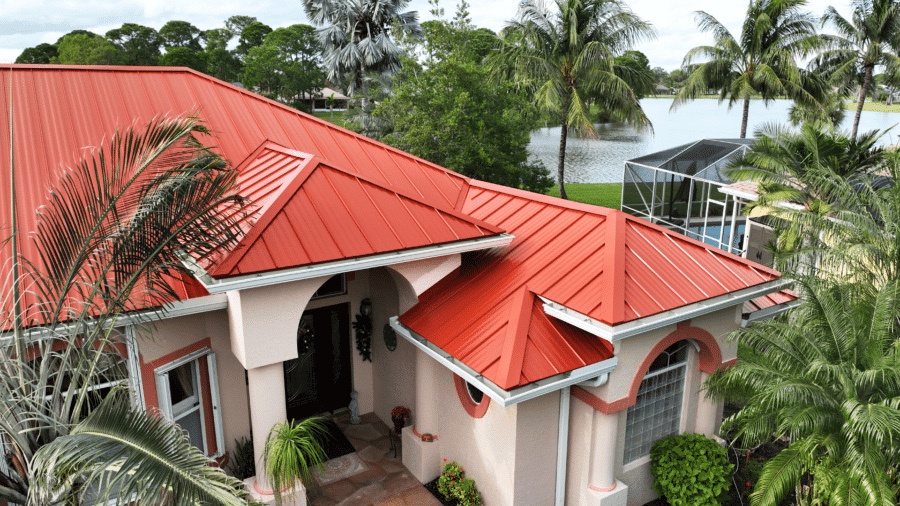

M150 - 1.5" Mechanical Lock Standing Seam
The heaviest standing seam assembly in the line. A 1.5" mechanically seamed rib closed to 90 degrees, available in steel or coastal aluminum, with a sealant option that lifts the steel panel to its top rating.
The heaviest standing seam assembly in the line. A 1.5" mechanically seamed rib closed to 90 degrees, available in steel or coastal aluminum, with a sealant option that lifts the steel panel to its top rating.
Best for: High-load and coastal projects. Florida Product Approval FL46540.02-R0 (24 ga steel) · FL46540.03-R0 (0.032" aluminum). Verify the current revision at floridabuilding.org before submittal.
Why this panel
- HVHZ & Miami-Dade approved (FL46540.02-R0 (24 ga steel) · FL46540.03-R0 (0.032" aluminum))
- Class A fire rated
- Attachment: Concealed fixed clip
- Fabricated to exact length by our Florida fabrication partners - no end-laps, less waste
- Delivered crated and protected anywhere in Florida - Miami to Jacksonville
Fabricated to exact length, delivered crated.
Specifications
M150 at a glance
| Profile | 1.5" Mechanical Lock Standing Seam |
|---|---|
| Seam height | 1.5" nominal |
| Panel coverage | 16" maximum |
| Material | 24 ga steel (50 ksi min) or 0.032" aluminum |
| Seaming | Field seamed to 90 degrees |
| Attachment | Concealed fixed clip |
| Clip | 1.5" tall 26 ga fixed clip, 2" x 1" base or larger |
| Fastener | (2) #10 x 1" pancake-style per clip, per FBC 1506.6 |
| Substrate | 15/32" minimum plywood |
| Finish | Galvalume, SMP or PVDF (steel); PVDF (aluminum) |
| Fire rating | Class A |
| Florida approval | HVHZ & Miami-Dade approved (FL46540.02-R0 (24 ga steel) · FL46540.03-R0 (0.032" aluminum)) |
Installed by ERS
We don't just supply it. We install it.
Add professional installation to your M150 roof and ERS handles the whole job - vetted crews, onsite project management, and code-compliant work from site prep to final walkthrough. One team, one point of contact, start to finish.
- Vetted crews with validated insurances - the 10 Point Peace of Mind Guarantee
- Onsite project management for quality, safety, and timelines
- HVHZ, Miami-Dade, and Broward County code compliant
- Backed by a limited lifetime workmanship warranty
Ready to price M150?
Get an accurate material list in minutes with IMQ, or book a consultation, field measurement, or quote appointment.
