Standing Seam

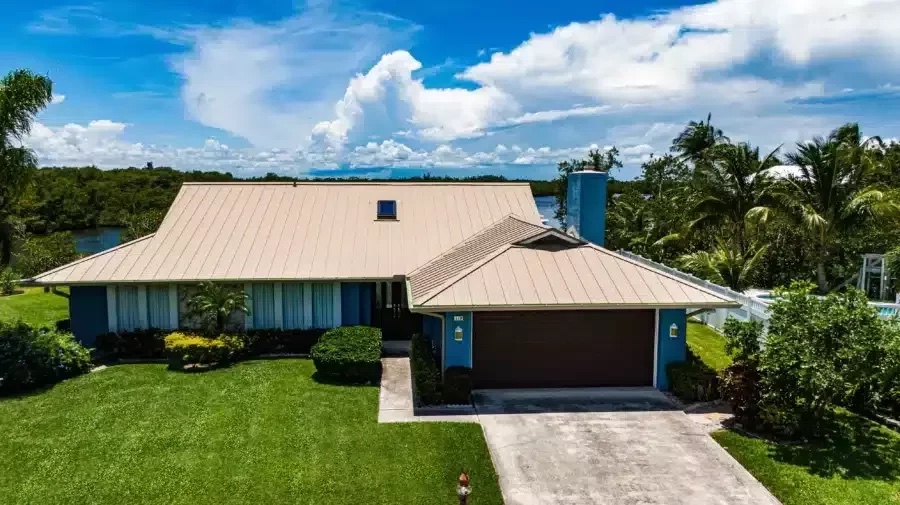

M100 - 1" Mechanical Lock Standing Seam
Aluminum mechanically seamed panel for coastal work. The seam is field-rolled to a 180 degree double lock, giving a fully closed joint that does not rely on snap engagement.
Aluminum mechanically seamed panel for coastal work. The seam is field-rolled to a 180 degree double lock, giving a fully closed joint that does not rely on snap engagement.
Best for: Coastal and salt-air exposure. Florida Product Approval FL41812.03-R1. Verify the current revision at floridabuilding.org before submittal.
Why this panel
- HVHZ & Miami-Dade approved (FL41812.03-R1)
- Class A fire rated
- Attachment: Concealed clip
- Fabricated to exact length by our Florida fabrication partners - no end-laps, less waste
- Delivered crated and protected anywhere in Florida - Miami to Jacksonville
Fabricated to exact length, delivered crated.
Specifications
M100 at a glance
| Profile | 1" Mechanical Lock Standing Seam |
|---|---|
| Seam height | 1" nominal |
| Panel coverage | 16" maximum |
| Material | 0.032" aluminum |
| Seaming | Field seamed to 180 degrees (double lock) |
| Attachment | Concealed clip |
| Clip | UC-3 butterfly two-piece assembly |
| Fastener | (2) #12 x 1" pancake-style per clip, per FBC 1506.6 |
| Substrate | 15/32" minimum plywood |
| Finish | PVDF |
| Fire rating | Class A |
| Florida approval | HVHZ & Miami-Dade approved (FL41812.03-R1) |
Installed by ERS
We don't just supply it. We install it.
Add professional installation to your M100 roof and ERS handles the whole job - vetted crews, onsite project management, and code-compliant work from site prep to final walkthrough. One team, one point of contact, start to finish.
- Vetted crews with validated insurances - the 10 Point Peace of Mind Guarantee
- Onsite project management for quality, safety, and timelines
- HVHZ, Miami-Dade, and Broward County code compliant
- Backed by a limited lifetime workmanship warranty
Ready to price M100?
Get an accurate material list in minutes with IMQ, or book a consultation, field measurement, or quote appointment.
